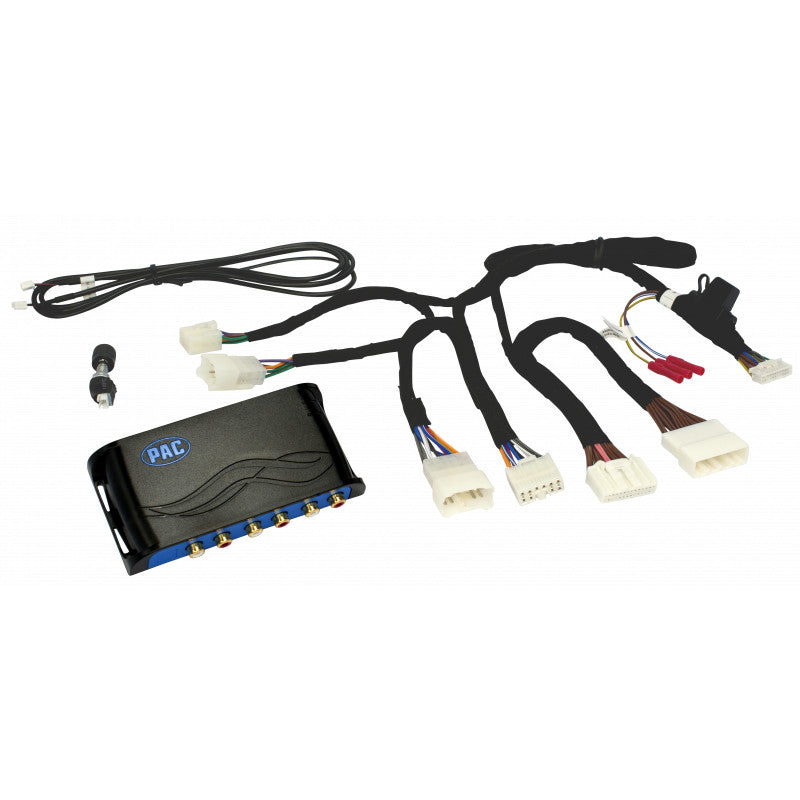

Pac Audio AP4-TY12 : Amplifier Add-On Interface Adapter, 2012-2019 Lexus Toyota (Amplified)
Add-On Amplifier OEM Integration Interface for Select 2012-2019 Amplified Lexus and Toyota Vehicles.
Today's modern vehicle audio systems are becoming increasingly more sophisticated and complex. PAC engineered AmpPRO to dramatically simplify the installation of upgraded amplifiers in data-bus-controlled amplified sound systems.
AmpPRO allows you to keep the original radio's fit, finish, and features while giving you the freedom to improve the audio performance in record time!
- Simplifies amplifier installation
- Prevents the need for summing and DSP devices
- Provides factory sound system upgrade solution
Features
- It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
- Enables the addition of a subwoofer system to the original sound system
- Upgrade solution for factory, fixed level, data-bus controlled sound systems
- Everything you need in one box to install your choice of aftermarket amplifier(s)
- The time-saving design prevents the need for summing and audio correction devices.
- Variable volume, fade, balance, bass, mid, and treble audio settings
- Retains Bluetooth, navigation, safety system, and all warning chimes
- Front, rear, sub preamp outputs (5 volt RMS)
- Provides flat audio output for a solid audio foundation
- Customized OE bass, mid, and treble center frequency selection
- Plug-n-play installation with two 20-pin connectors (IE Bus)
- Remote sub level controller included
- Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
- AmpPRO module
- Harness (IE Bus)
- Bass knob
- Knob harness
- Manual
Vehicles with Telematics (ie: SOS, Enform, etc) will require some additional wiring. See manual for details.
- Vehicle must be equipped with a JBL system. There must be an actual visible label that says JBL or JBL Synthesis. If the vehicle is equipped with a factory amplifier but does not say JBL, it is not compatible because the amplifier is analog and not digital.
- Lexus vehicles equipped with the Mark Levinson system are not compatible.
- Lexus vehicles equipped with navigation are not compatible.
- Lexus CT200h: Must be equipped with a center channel and a subwoofer
- Between 2012-2015 Toyota used two different styles of connectors. In order for the AP4-TY12 to be compatible, the radio must have the 10 / 6-pin BHA1761 style connector. Vehicles equipped with the 20-pin BHA8113 style connector are not compatible. The only way to know what connector the radio has is to physically remove it from the dash and look at it. Please see pictures below for reference.
Applications
-
LEXUS
CT 200H
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2014-2017
ES 350
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2015-2017
GX 460
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2014-2017
IS 200T
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
IS 250
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2014-2015
IS 300
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
NX 200T
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2015-2017
NX 300H
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2015-2017
RC 200T
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
RC 300
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
RC 350
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2015-2017
RX 350
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
TOYOTA
4Runner
ALL TRIM LEVELS
—
2014-2018
Avalon
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2013-2014
Avalon
ALL TRIM LEVELS
—
2015-2018
Camry
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2012-2014
Camry
ALL TRIM LEVELS
—
2015-2017
Highlander
ALL TRIM LEVELS
—
2014-2018
Prius
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2012-2015
Prius
ALL TRIM LEVELS
—
2016-2017
Rav4
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2014
Rav4
ALL TRIM LEVELS
—
2015-2018
Sequoia
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10 / 6-pin BHA1761 Style Radio Harness
2013
Sequoia
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2014
Sequoia
ALL TRIM LEVELS
—
2015-2018
Sienna
ALL TRIM LEVELS
—
2015-2017
Tacoma
ALL TRIM LEVELS
—
2014-2018
Tundra
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10 / 6-pin BHA1761 Style Radio Harness
2014-2015
Tundra
ALL TRIM LEVELS
—
2016-2019
Venza
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2013-2014
Venza
ALL TRIM LEVELS
—
2015-2016
