Description

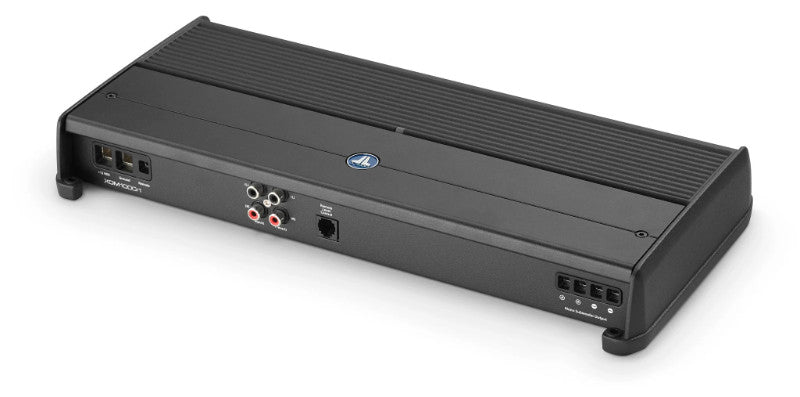

JL-Audio XDM-Series Monoblock Class-D Marine-Grade Amplifier, 1000-Watts @ 2-Ohm or 600-Watts @ 4-Ohm.
This monoblock subwoofer powerhouse employs JL-Audio's high-speed NexD switching technology to achieve unprecedented efficiency and amazing power output from a very compact chassis. The XDM1000/1 generates up to 1000W of continuous power into a 2-ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.
Designed for car or boat installations, the XDM1000/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Intended specifically for subwoofer applications, the XDM1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500Hz and a defeatable infrasonic filter (30Hz, 24dB/oct.). With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.

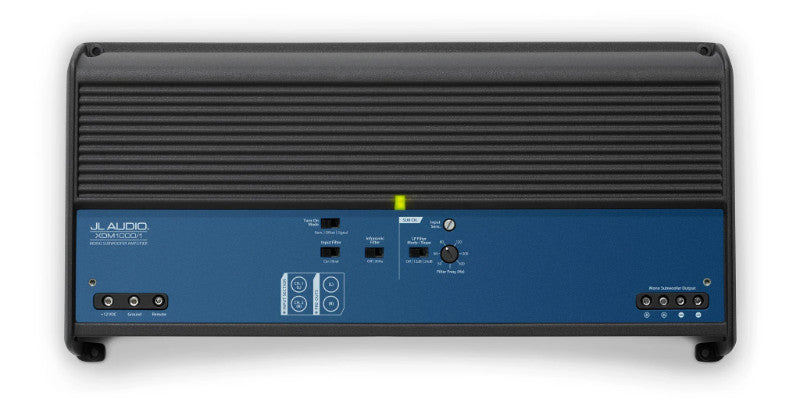

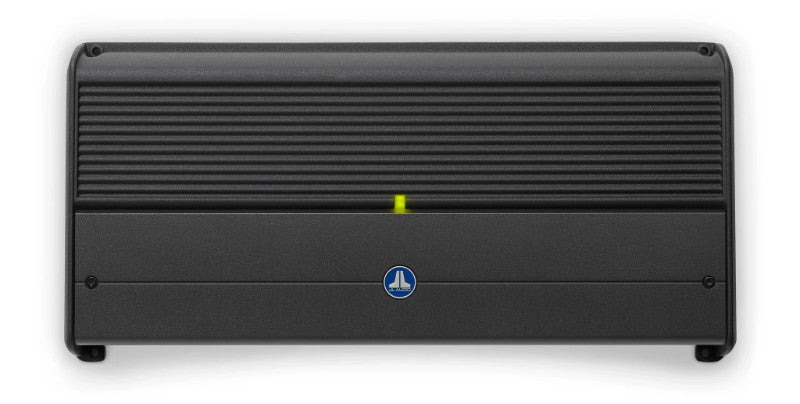

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Output Specifications
-
@ 4 Ω
|
600 W RMS x 1 @ 14.4V
|
@ 3 Ω
|
800 W RMS x 1 @ 14.4V
|
@ 2 Ω
|
1000 W RMS x 1 @ 14.4V
|
@ 1.5 Ω
|
N/A
|
-
@ 4 Ω
|
500 W RMS x 1 @ 12.5 V
|
@ 3 Ω
|
650 W RMS x 1 @ 12.5 V
|
@ 2 Ω
|
800 W RMS x 1 @ 12.5 V
|
@ 1.5 Ω
|
N/A
|
General Specifications
-
Frequency Response
|
7 Hz - 500 Hz (+0, -1dB)
|
S/N Ratio, referred to highest rated power
|
>83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
|
S/N Ratio, referred to 1 W
|
>53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
|
Damping Factor @ 4 Ω
|
>1000 / 50 Hz
|
Damping Factor @ 2 Ω
|
>500 / 50 Hz
|
THD+N @ Rated Power
|
<1% @ 2 Ω per Ch.
|
Input Voltage Range @ RCA Inputs
|
200 mV - 4 V RMS
|
Min.Copper Power / Ground Wire Gauge
|
4 AWG wire
|
Fuse Rating
|
80 A (AFS, AGU or MaxiFuse™)
|
Amplifier Settings
-
Filter Mode(s)
|
Low-Pass only
|
Filter Slope(s)
|
12/24 dB/octave
|
Filter Frequency Range
|
50 Hz - 500 Hz
|
Detented, Calibrated Filter Freq. Potentiometer
|
Yes
|
Filter Defeat Function
|
Yes
|
Infrasonic Filter
|
30 Hz, defeatable
|
Bass Boost EQ
|
No
|
Output Polarity Switch
|
No
|
Remote Subwoofer Level Control
|
Optional HD-RLC or MHD-RLC (water-resistant)
|
Remote Bass EQ Boost Control
|
No
|
Pass-Through Preamp Output
|
Buffered
|
Dimensions
-
Height (H)
|
2.05 in / 52 mm
|
Width (W)
|
14.73 in / 374 mm
|
Depth (D)
|
7.09 in / 180 mm
|
