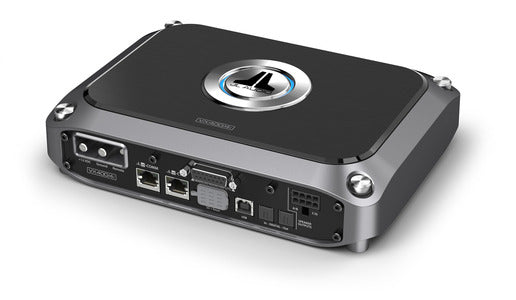

JL Audio VX400/4i : 4ch x 75W/100W Digital DSP Amplifier @ 4Ω/2Ω
4-Channel Class-D Full-Range Amplifier with Integrated DSP, 100-Watt x 4 @2-Ohm / 75-Watt x 4 @ 4-Ohm.
Designed to simplify great audio, every VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
With JL's second-generation NexD2™ technology, the VX400/4i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, producing up to 200 W x 2.
The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.
Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable
TüN™ Software Applications
Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices.
Unprecedented, Onboard DSP Tuning Power
- Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM®
- Hi-Res audio processing at 24 bit/96 kHz
- High-performance AKM® A/D and D/A converters
- 10 Bands of fully parametric EQ, per output channel, including pre-outs
- Shelving EQ option for Band 1 and Band 10
- High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes:
Linkwitz-Riley: 12, 24, 48 dB/octave
Butterworth: 6, 12, 18, 24, 36, 48 dB/octave - Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm)
- All-Pass Filter (Phase EQ), with variable "Q" and corner frequency
- Polarity Reversal (0 or 180 deg.)
- Output Level Trim in 0.1 dB steps
NexD2™ Switching Amplifier Technology
- JL's latest generation of high-speed switching technology delivers superb low frequency power and efficiency.
- Specially optimized for subwoofer applications

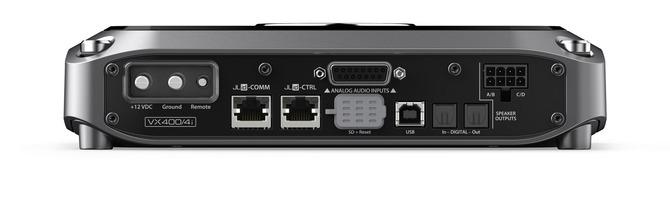

Ultra-Versatile Analog and Digital Inputs
- High-performance, differential-balanced analog inputs for outstanding noise rejection
- Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems
- Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
- Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz)
- Automatic turn-on options via Signal-Sensing or DC-Offset sensing
Functional Compact Chassis Design
- Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding
- All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces.
- Configurable LED logo ring displays status and can display audio preset color code or user-defined color
- Logo badge can be oriented in 90 degree increments
- Corner caps engineered to conceal mounting holes and hardware
JLid™ System Command and Control with Networking Capabilities
JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLid™ accessories, including:
- DRC-100/DRC-200/DRC-205 Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat.
- VXi-BTC Bluetooth® Communicator: Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device.
- VXi-HUB Optical Network Hub: Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers.
Specifications
-
Frequency Response
12 Hz - 24 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
(Analog Inputs)
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
(Analog Inputs)
80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power
(Digital Inputs)
101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
(Digital Inputs)
81 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>100 / 50 Hz
Damping Factor @ 2 Ω
>50 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 16 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
40 A (AFS, AGU or MaxiFuse™)
Output Specifications
-
@ 4 Ω
75 W RMS x 4
@ 2 Ω
100 W RMS x 4
Bridged @ 4Ω
200 W RMS x 2
