Description

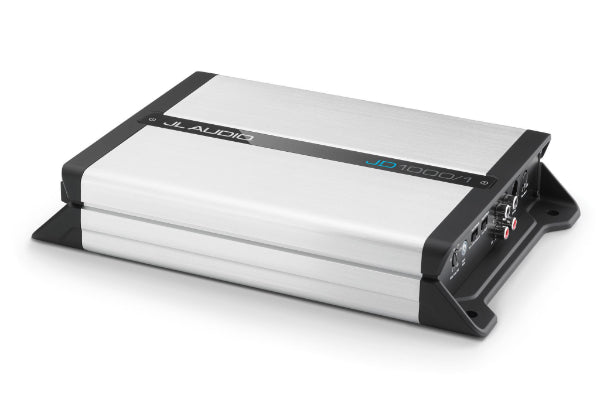

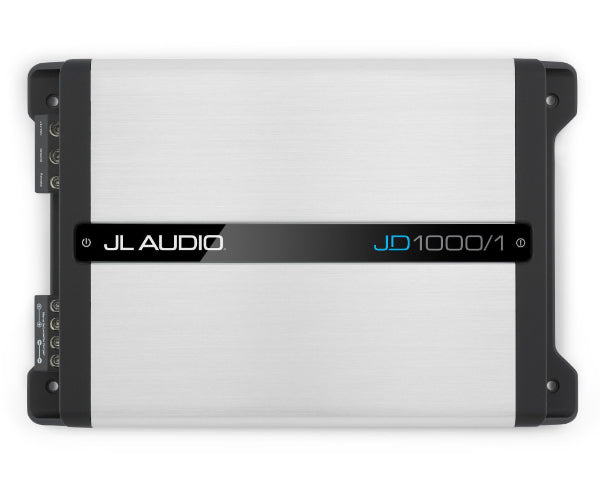

JD-Series Monoblock Amplifier, 1000-Watt @ 2-Ohm or 600-Watt @ 4-Ohm.

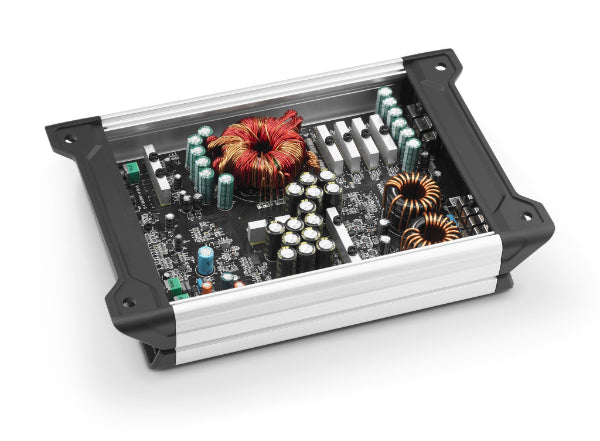

Designed to produce a serious 1000 watts into 2 ohms (14.4V, 1% THD), the JD1000/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. JL Audio's proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.

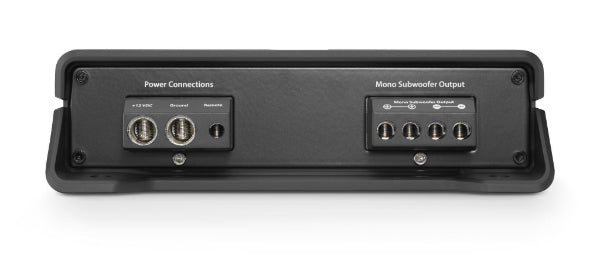

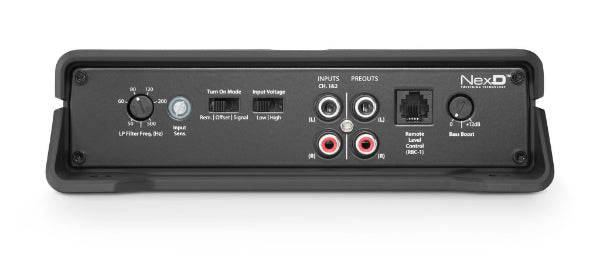

The JD1000/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.
The JD1000/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.
Output Specifications
-
@ 4 Ω
|
600 W RMS x 1
|
@ 3 Ω
|
800 W RMS x 1
|
@ 2 Ω
|
1000 W RMS x 1
|
General Specifications
-
Frequency Response
|
7 Hz - 500 Hz (+0, -1dB)
|
S/N Ratio, referred to highest rated power
|
>80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
|
S/N Ratio, referred to 1 W
|
>50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
|
Damping Factor @ 4 Ω
|
>1000 / 50 Hz
|
Damping Factor @ 2 Ω
|
>500 / 50 Hz
|
THD+N @ Rated Power
|
<1% @ 2 Ω per Ch.
|
Input Voltage Range @ RCA Inputs
|
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
|
Min.Copper Power / Ground Wire Gauge
|
4 AWG wire
|
Fuse Rating
|
80 A (AFS, AGU or MaxiFuse™)
|
Amplifier Settings
-
Filter Mode(s)
|
Low-Pass only
|
Filter Slope(s)
|
12 dB/octave
|
Filter Frequency Range
|
50 Hz - 500 Hz
|
Detented, Calibrated Filter Freq. Potentiometer
|
No
|
Filter Defeat Function
|
No
|
Infrasonic Filter
|
No
|
Bass Boost EQ
|
Yes
|
Output Polarity Switch
|
No
|
Remote Subwoofer Level Control
|
Optional (RBC-1)
|
Remote Bass EQ Boost Control
|
No
|
Pass-Through Preamp Output
|
Buffered
|
