Description

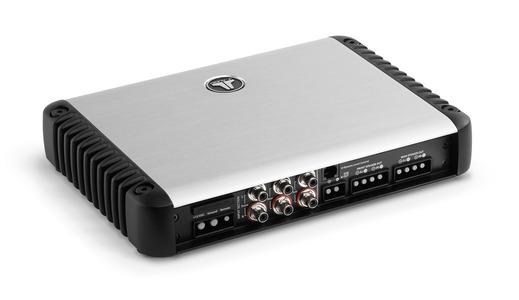

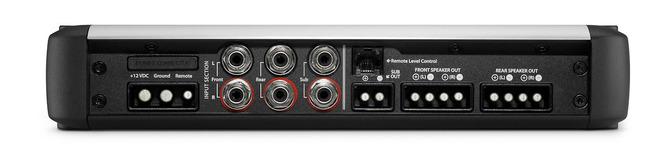

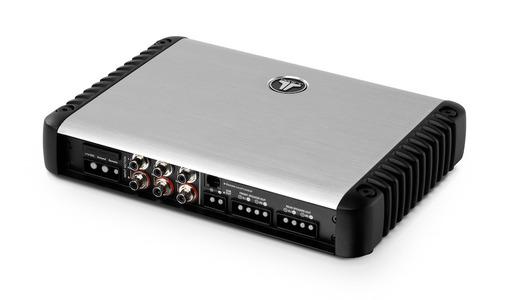

HD-Series 5-Channel Class-D System Amplifier, 100-Watts x 4ch + 500-Watts x 1ch @ 1.5-4-Ohms.
Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!
Using JL's Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100W x 4 to its four main channels, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

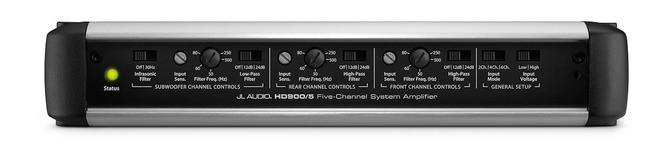

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
General Specifications
-
Frequency Response (Main Channels)
|
12 Hz - 28 kHz (+0, -1dB)
|
Frequency Response (Subwoofer Channel)
|
12 Hz - 10 kHz (+0, -1dB)
|
S/N Ratio, referred to highest rated power (Main Channels)
|
>108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
|
S/N Ratio, referred to 1 W (Main Channels)
|
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
|
Damping Factor @ 4 Ω
|
>400 / 50 Hz
|
Damping Factor @ 2 Ω
|
>200 / 50 Hz
|
THD+N @ Rated Power (Main Channels)
|
<0.03% @ 4 Ω
|
THD+N @ Rated Power (Subwoofer Channel)
|
<0.05% @ 4 Ω
|
Input Voltage Range @ RCA Inputs
|
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
|
Min.Copper Power / Ground Wire Gauge
|
Accepts up to 4 AWG wire
|
Fuse Rating
|
60 A (AFS, AGU or MaxiFuse™)
|
Output Specifications
-
Main Channels @ 4 Ω
|
100 W RMS x 4
|
Main Channels @ 3 Ω
|
75 W RMS x 4
|
Main Channels @ 2 Ω
|
75 W RMS x 4
|
Main Channels @ 1.5 Ω
|
75 W RMS x 4
|
Main Channels - Bridged @ 8 Ω
|
200 W RMS x 2
|
Main Channels - Bridged @ 4 Ω
|
150 W RMS x 2
|
Subwoofer Channel @ 4 Ω
|
500 W RMS x 1
|
Subwoofer Channel @ 3 Ω
|
500 W RMS x 1
|
Subwoofer Channel @ 2 Ω
|
500 W RMS x 1
|
Subwoofer Channel @ 1.5 Ω
|
500 W RMS x 1
|
