Description

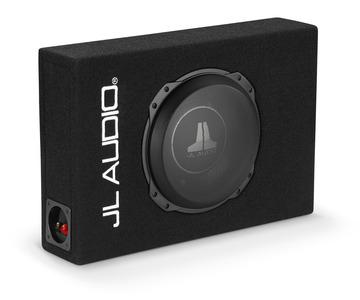

PowerWedge-Series 10-Inch 400-Watt Enclosed Subwoofer System, 2Ω Sealed Enclosure.
In this low-profile PowerWedge™ subwoofer system, JL harnesses the performance of the 10TW3 to deliver amazing sub-bass from an enclosure that is only 4.5 in. (114 mm) deep.
This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10TW3-D4 and has been fine-tuned through extensive real-world listening.
The PowerWedge™ subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 - 400W
Nominal Impedance: 2 Ω
General Specifications
-
Continuous Power Handling (RMS)
|
400 W
|
System Nominal Impedance
|
2 Ω
|
Enclosure Type
|
Sealed
|
Finish
|
Black carpet
|
Grille Included
|
Black Steel Mesh
|
Physical Specifications
-
External Width (W)
|
20.75 in / 527 mm
|
External Height (H)
|
14 in / 357 mm
|
External Depth (D1)
|
4.5 in / 114 mm
|
Net Weight
|
21.2 lb / 9.6 kg
|
