Description
Add-On Amplifier OEM Integration Interface for Select 2011-UP Ford Vehicles.
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
- Designed to provide (2) channels of low-level audio output from the factory system
- Allows for the installation of an amplifier for speakers or subwoofers
- Gain Controller included to adjust the overall output
- 12v-500mA remote wire activated with signal sense
- 55 watts per channel

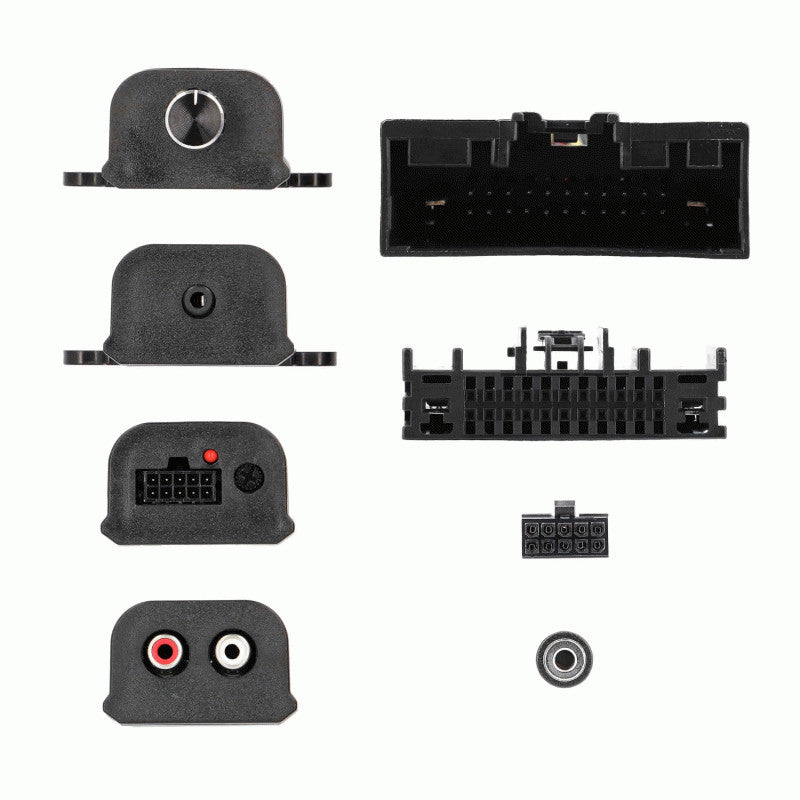

Contents

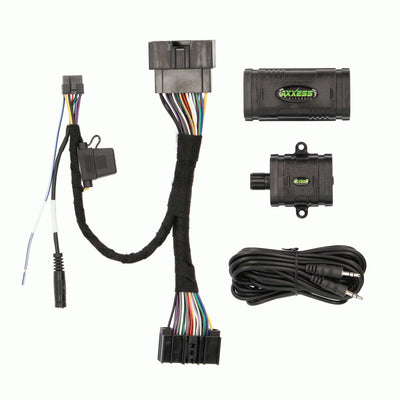

- AXLOC-FD2 Wiring Harness
- Gain Controller
- 12v-500mA Remote Wire
- Auxiliary Cable
Applications
-
FORD
|
|
|
Edge
|
non-amplified
|
2011-2020
|
Escape
|
non-amplified
|
2013-2019
|
Explorer
|
non-amplified
|
2011-2019
|
F-150
|
non-amplified
|
2013-2020
|
F250/F350/F450/F550
|
non-amplified
|
2013-2019
|
Fiesta
|
non-amplified
|
2011-Up*
|
FLEX
|
non-amplified
|
2013-2019
|
Focus
|
non-amplified
|
2012-2018
|
Fusion
|
non-amplified
|
2013-2020
|
Mustang
|
non-amplified
|
2015-2020
|
Ranger
|
non-amplified
|
2019-2020
|
TAURUS
|
non-amplified
|
2013-2019
|
Transit 150/250/350
|
non-amplified
|
2015-2019
|
Transit Connect
|
non-amplified
|
2014-2018
|
