Description

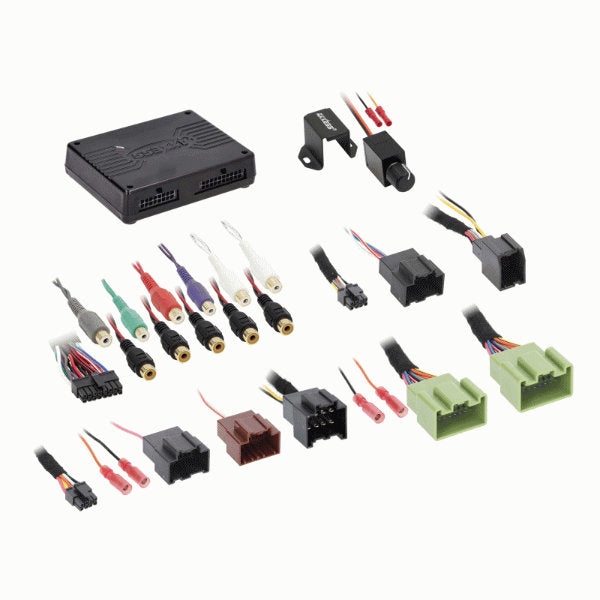

Add-On Amplifier OEM Integration Line Converter with DSP and Factory-Amplifier Bypass-Harness for Select 2019-UP Factory Amplified and Non-Amplified GM Vehicles.
The AXDSP-X offers installers a fast, cost-effective solution for improving the sound system with 10 individually assigned output channels, the ability to password-protect your settings, and an easy-to-use smartphone app. It has an onboard digital amplifier turn-on capability with built-in technology to retain many of the vehicle features commonly lost when installing a DSP.
Complete Tuning Control
Installers will have full control to fine-tune each of the 10 channel outputs individually, controlled wirelessly via a free app available for smartphones and tablets. The app makes tuning easy with a 31-band graphic EQ and up to 10ms time delay for each channel, with independent high pass, low pass, and bandpass filters.
Retain Features with a Built-in Interface
Utilizing Axxess’s data interface technology, the AXDSP-X goes beyond what a traditional DSP can do and retains many of the features commonly lost when upgrading a sound system. Voice prompts, parking sensor chimes, and other factory chimes are retained with an adjustable volume control that many traditional DSPs cannot offer. This is a cost-effective solution for customers who want to retain their factory radio and improve their vehicle sound quality, while still retaining systems like SYNC or OnStar®.
One Solution, Many Applications
The AXDSP-X solution already works with a wide range of vehicle applications and systems, including OE or aftermarket radios, and fixed-level analog and/or digitally controlled amplified systems, in addition to non-amplified vehicles that do not have chimes. The AXDSP-X works with all the existing DSP T-harnesses and still offers the same easy installation behind the radio.
- Designed for Ethernet amplifiers
- Ethernet data interface included
-
AXDSP-X included
- Includes an amp bypass harness
- Retains factory chimes, including parking sensor chimes
- Retains OnStar voice prompts
- All chimes/voice prompts go through the aftermarket amp
- Adjustable chime level
- Micro “B” USB updatable
Applications
-
CADILLAC
|
|
|
XT4
|
Bose
|
2019-2023
|
CHEVROLET
|
|
|
Blazer
|
IOT or IOU & Bose
|
2019-2023
|
Camaro
|
IOS or IOT & Bose
|
2019-2023
|
Cheyenne
|
IOS or IOT & Bose
|
2019-2021
|
Colorado (New Style)
|
IOS or IOT & Bose
|
2019-2022
|
Corvette
|
|
2020-2023
|
Equinox
|
IOS or IOT & Bose
|
2019-2023
|
Malibu
|
IOU or IOS & Bose
|
2019-2022
|
Silverado
|
Bose
|
2022-2024
|
Silverado
|
IOS or IOT & Bose
|
2019-2021
|
Suburban
|
Bose
|
2021-2023
|
Tahoe
|
Bose
|
2021-2024
|
Traverse
|
IOS or IOT & Bose
|
2020-2022
|
GMC
|
|
|
Acadia
|
IOU & Bose
|
2020-2022
|
Acadia
|
IOU & Bose
|
2019-2019
|
Canyon
|
IOS or IOT & Bose
|
2019-2022
|
Sierra
|
Bose
|
2019-2024
|
Terrain
|
IOS, IOT or IOU & Bose
|
2019-2022
|
Yukon
|
Bose
|
2021-2024
|
Documentation
