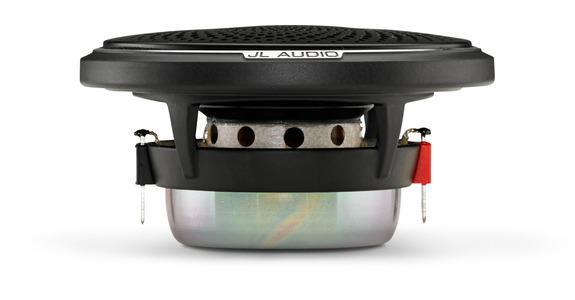

C1-Series 6.5-Inch 50-Watt Coaxial Speaker System.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650x is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 24 KHz ± 3 dB
Documentation
JL Audio C1-650x Manual
Four-Inch Coaxial Midrange-Tweeter Drivers, 75-Watt RMS.
The Kicker KS series four-inch coaxial speakers come with a custom bracket option built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
4, 100
Tweeter [in, mm]
½, 13
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
88
Frequency Response [Hz]
60-20k
Mounting Hole Diameter [in, mm]
3-11⁄16, 94
Top Mount Depth [in, mm]
1-13⁄16, 46
Bottom Mount Depth [in,mm]
2-1⁄16, 51
Tweeter Protrusion [in,mm]
1/8, 3
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Documentation
Kicker KS Series Coaxial Speaker Manual
Four-by-Six-Inch Coaxial Speaker Drivers, 75-Watt RMS.
The Kicker KS series 4x6-inch coaxial speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Specifications
Speaker Design
2-Way
Woofer [in, mm]
4x6, 100x160
Tweeter [in, mm]
½, 13
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
88
Frequency Response [Hz]
50-20k
Mounting Hole Diameter [in, mm]
4x5-5⁄16, 101x151
Top Mount Depth [in, mm]
1-11⁄16, 44
Bottom Mount Depth [in,mm]
2, 51
Tweeter Protrusion [in,mm]
1/16, 2
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Documentation
Kicker KS Series Coaxial Speaker Manual
