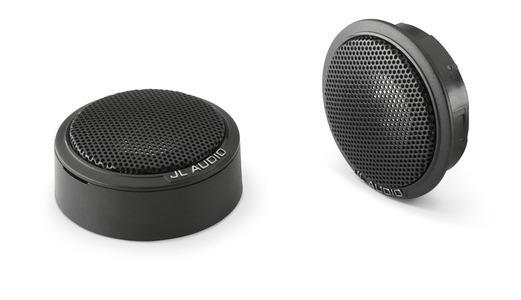

C2-Series 0.75-Inch 60-Watt Silk Dome Tweeters.
The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C2-075ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power*
150 W
Recommended Amplifier Power (RMS)
25 - 100 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
4 kHz - 22 KHz ± 3 dB
Documentation
JL Audio C2-075ct Manual
C3-Series 1-Inch 75-Watt Pair of Silk Dome Component Tweeters
The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance.
The C3 component tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be installed coaxially onto the C3 woofers using the fixtures included with the C3 Component / Coaxial Systems.
Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C3-100ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
75 W
Peak Music Power*
225 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
90.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
4 kHz - 25 KHz ± 3 dB
Documentation
JL Audio C3-650 Manual
C6-Series 1-Inch 75-Watt Single Silk Dome Component Tweeter.
Born from the same DNA as the JL Audio flagship C7 speakers, the C6 series component drivers let you team premium, pure silk dome tweeters with highly linear woofers to create a loudspeaker system of exceptional refinement, precision and dynamic capability.
Pairing full-frame 6.5-inch or 2.75-inch woofers with 1-inch silk dome tweeters, the C6 series drivers offer advanced sound technology for an exceptional car audio listening experience. Passive crossover networks are not included with the C6 drivers, as they are designed for active systems.
An edge-driven pure silk dome tweeter design, when paired with the C6 woofer, produces sparkling detail with excellent off-axis response and damping for balanced coverage in your listening environment. An automatic, solid-state tweeter protection circuit minimizes the possibility of tweeter failure.
A high-quality tuning Digital Signal Processor (DSP) — such as the TwK® DSP or a VXi amplifier with built-in DSP — is recommended. Using individual amplifier channels for each C6 speaker enables the system designer to achieve precise setup of equalization, delay and crossover filters for optimal in-vehicle performance.
Sold as a single tweeter.
General Specifications
SIZES
1", 2.75", 6.5"
CONTINUOUS POWER HANDLING (RMS)
1": 75W, 2.75": 50W, 6.5": 100W
SENSITIVITY (SPL @ 1 W/1 M)
1": 90dB, 2.75": 83.50dB, 6.5": 87.37dB
SENSITIVITY (SPL @ 1 W/0.5 M)
1": 96dB
SENSITIVITY (SPL @ 2.83 V/1 M)
1": 93dB, 2.75": 86.50dB, 6.5": 90.33dB
FREQUENCY RESPONSE (+/- 3 DB)
1": 3kHz-21KHz, 2.75": 350 Hz-4.KHz, .5": 55Hz-6KHz
NOMINAL IMPEDANCE
4 Ω
RECOMMENDED AMPLIFIER POWER (RMS)
1": 25-100W Channel, 2.75": 25-80W Channel, 6.5": 25-150W Channel
VOICE COIL DIAMETER
2.75": 0.8" (20.5mm), 6.5": 1.27" (32mm)
CONE MATERIAL
Vacuum-formed, mineral-filled polypropylene
TWEETER TYPE
Silk Dome
TWEETER SIZE
1" (25mm)
GRILLE(S) INCLUDED
yes
WARRANTY
1 year
CONNECTIONS
SPEAKER CONNECTIONS
Spade connectors
MOUNTING DIMENSIONS
FRAME OUTER DIAMETER
2.75": 2.52" (77mm), 6.5": 6.5" (165mm)
MOUNTING DEPTH CLEARANCE
2.75": 1.42" (36mm), 6.5": 2.60" (66mm)
FRONTAL GRILLE PROTRUSION
2.75": 0.47" (12mm), 6.5": 1" (25mm)
MOUNTING HOLE
2.75": 2.52" (64mm), 6.5": 5.46" (139mm)
GRILLE TRAY OUTER DIAMETER
2.75": 3.58" (91mm), 6.5": 6.76" (172mm)
BOLT HOLE CIRCLE
2.75": 3.03" (77mm), 6.5": 6.12" (156mm)
MOTOR OUTER DIAMETER
2.75": 2.75" (69mm), 6.5": 3.54" (90mm)
PARMETERS
FREE AIR RESONANCE (FS)
1": 1500Hz, 2.75": 185Hz, 6.5": 52.8Hz
ELECTRICAL “Q” (QES)
2.75": 0.769, 6.5": 0.647
MECHANICAL “Q” (QMS)
2.75": 7.848, 6.5": 5.076
TOTAL “Q” (QTS)
2.75": 0.700, 6.5": 0.574
EQUIVALENT COMPLIANCE (VAS)
2.75": 0.0353 cu ft (0.125L), 6.5": 0.532 cu ft (15.069L)
ONE-WAY LINEAR EXCURSION (XMAX; SPECS ARE DERIVED VIA ONE-WAY VOICE COIL OVERHANG METHOD WITH NO CORRECTION FACTORS APPLIED)
2.75": 0.059" (1.50mm), 6.5": 0.148" (3.75mm)
REFERENCE EFFICIENCY (NO)
1": 0.602%, 2.75": 0.1414%, 6.5": 0.344%
MOVING MASS (MMS)
2.75": 4.65g, 6.5": 16.42g
MECHANICAL COMPLIANCE (CMS)
2.75": 0.00031 m/N, 6.5": 0.000581 m/N
MAGNETIC STRENGTH (BL)
2.75": 5.03, 6.5": 5.186
EFFECTIVE PISTON AREA (SD)
2.75": 3.66 in² (0.00236m²), 6.5": 21.4 in² (0.013807m²)
DC RESISTANCE (RE)
1" & 6.5": 3.20Ω, 2.75": 3.58Ω
TWEETER SPECS
FLUSH MOUNT FIXTURE DIAMETER
1": 2.13" (54mm)
SURFACE MOUNT FIXTURE DIAMETER
1": 2.11" (54mm)
FLUSH MOUNT MOUNTING HOLE DIAMETER
1": 1.85" (47mm)
FLUSH MOUNT MOUNTING DEPTH
1": 1.85" (47mm)
FLUSH MOUNT TWEETER FRONTAL PROTRUSION
1": 0.30" (8mm)
SURFACE MOUNT TWEETER FRONTAL PROTRUSION
1": 1.04" (26mm)
Documentation
JL Audio C6-100ct Manual
